Aquatech has invested in state of the art drilling equipment to deliver all aspects of water well drilling.
Our equipment is maintained to the highest standards to ensure a high level of safety and productivity.

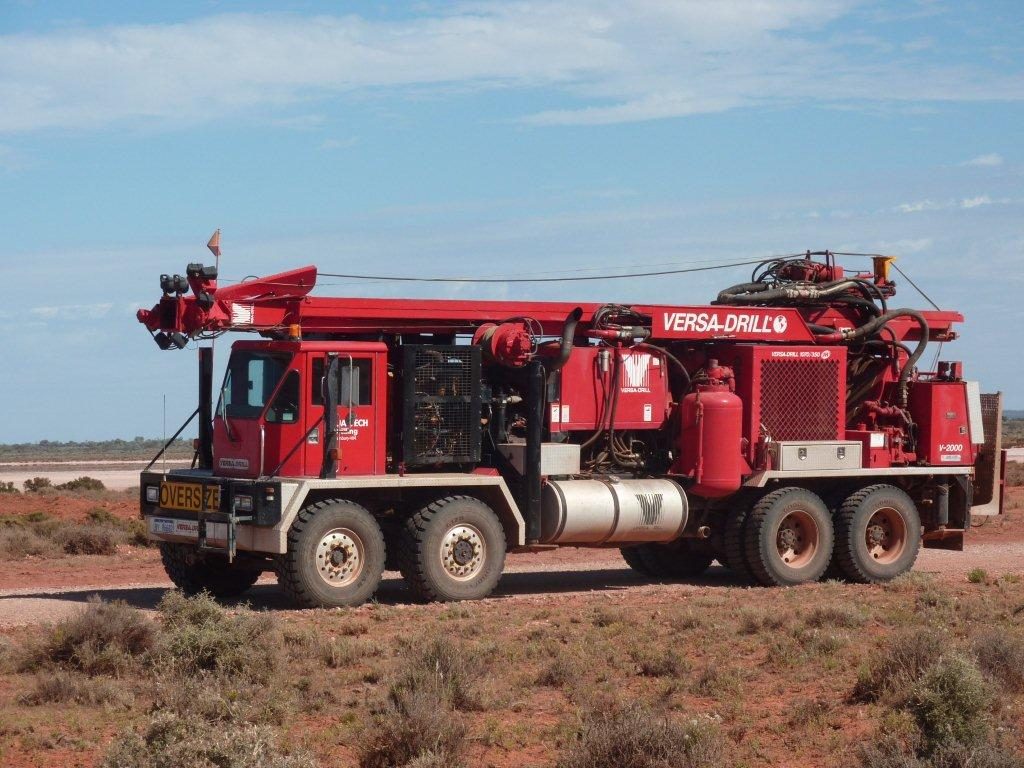

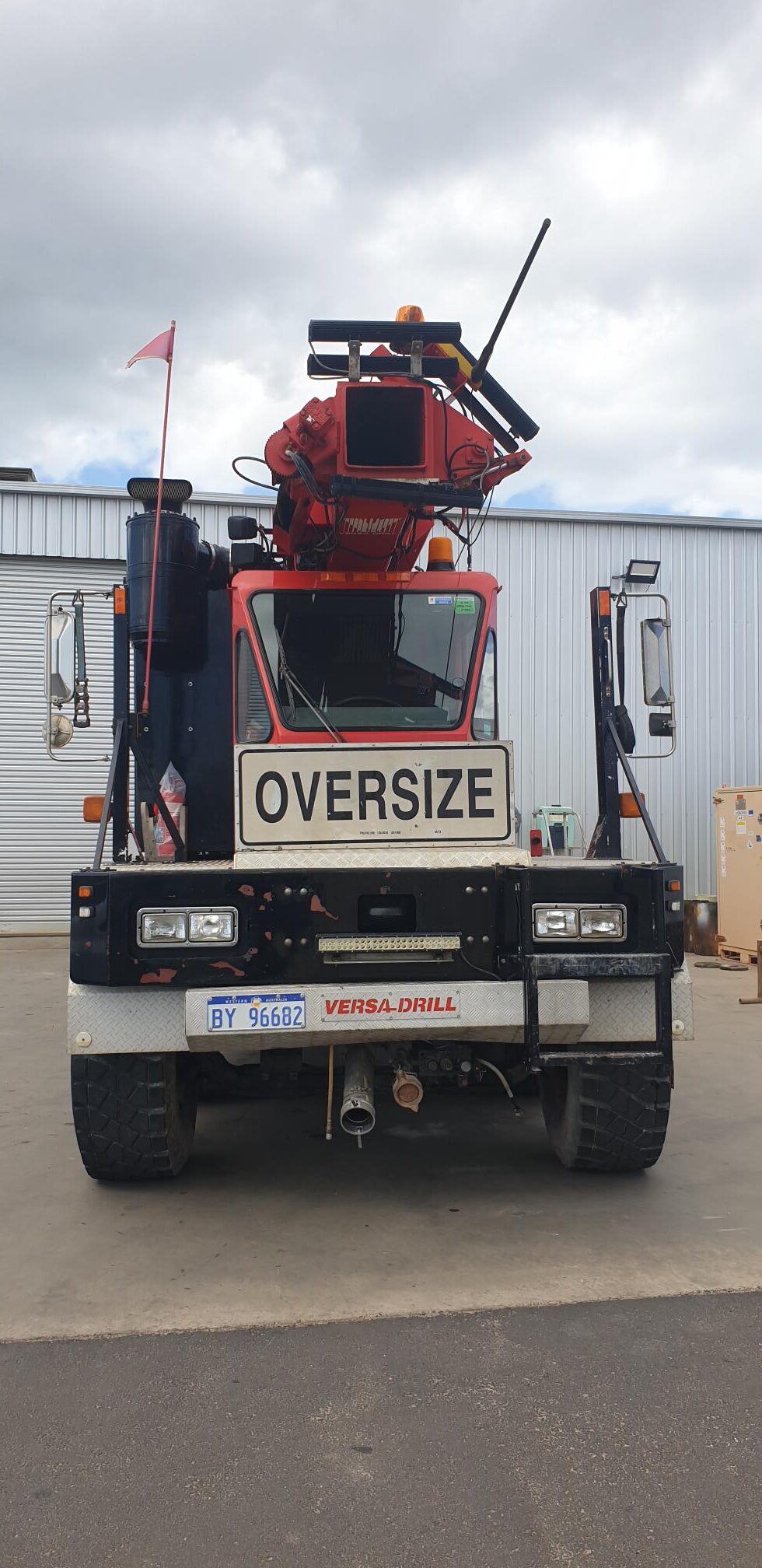

Versa-Drill V2000
- Carrier 8x6
- 6" to 24" hole size
- Mud pump on board 40 LPS
- Pull back 80,000 lbs
- Pull down 30,000 lbs
- Top head drive torques 8,100 ft-lbs
- Hands free rod handling
- 41/2" drill pipe, 150m onboard
- Drilling depth to 1,000m
- Onboard 1070 X 350 PSI compressor
Rig setup time 1.5 hours

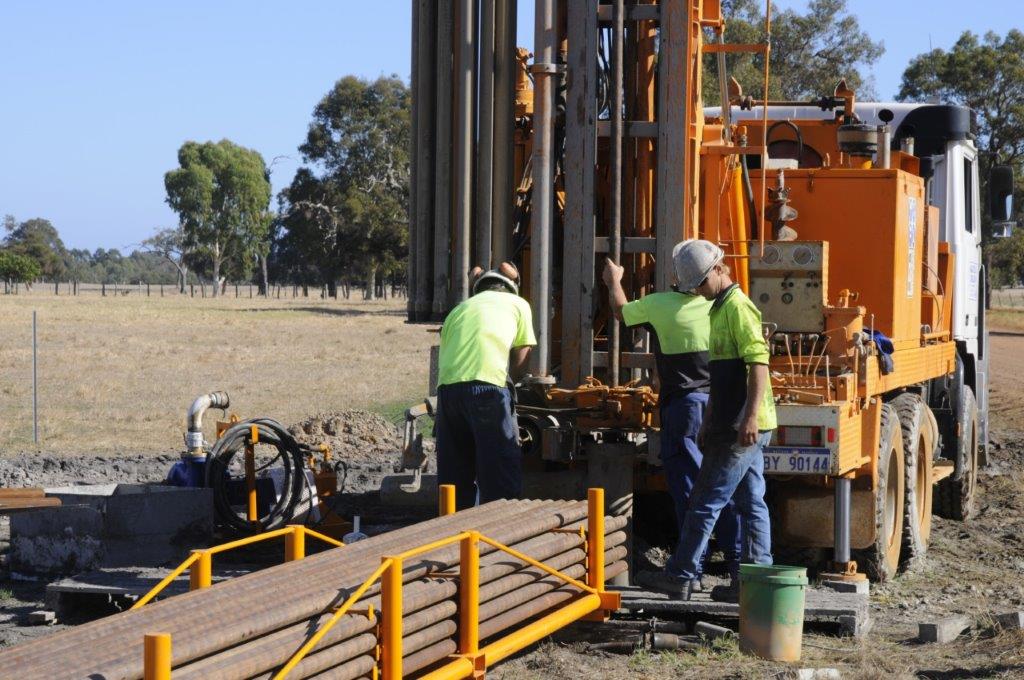

In-house Drill Rig
- Custom built
- Mounted on 6x4 Volvo
- 4" to 12" hole size
- Mud pump onboard 32 LPS
- Depth 8" diameter to 350m
- Rod handling carousel 80m
Rig set up time 25 minutes
Plant & Equipment
- Mud cleaning systems up to 750 GPM
- Desilter systems up to 900 GPM
- Mud mixing tanks, 5,000L to 10,000L
- Cement grouting units, trailer and skid mount
- Booster pumps
- Self contained living quarters
- Paddle mixers
- Test pumps
- Mobile compressors
- Crane trucks
- Water trucks
- Trailers
- Case 580 loader
- Fuel trailers and cells
- Gen set from 10 to 100 KVA
- Triplex mud pump 750 GPM
